Product structure:



Modular "set wye" consists of a set of water most modules of two modules and a water, water collection module and one on the left side of the module + a exhaust filtering module, multiple electric valve module or manual valve module + a on the right side cover modules, between modules and modules have sealed the leak proof design, each module with 4 M8 screw series into a module, use two stents to fix two modules for a set of complete set manifold.



Product advantages:



In order to facilitate installation, DN32 outer tooth and DN2S inner tooth are used in the interface between the main water supply pipe and the main return water pipe, and the branch pipe interface is available for customers to choose.



Per the collection manifold in the catchment horizontal bar and water group have exhaust, horizontal piece, the product used for the first time convenient exhaust debugging, if there is dirt could use during water medium deposition inside the filter can be regularly through the outlet manual drainage, pre Fu exhaust and 38 horizontal piece of eliminating the customer another pack of hemp and extra costs.



Each flow room of water distributor is controllable, and users can dynamically adjust it according to the size of regional space through visible and visible flow meter.



The temperature of each area can be controlled by the indoor temperature controller and the electric valve can be automatically regulated. The electric valve will automatically open or close the valve after receiving the instruction signal from the general controller in real time to achieve the constant temperature effect.



The unique hollow insulation design of this product reduces the problem of fast loss of heat energy in the process of using the former water divider, and more effectively reduces the problem of condensation on the surface of the ordinary water divider in the process of refrigeration.

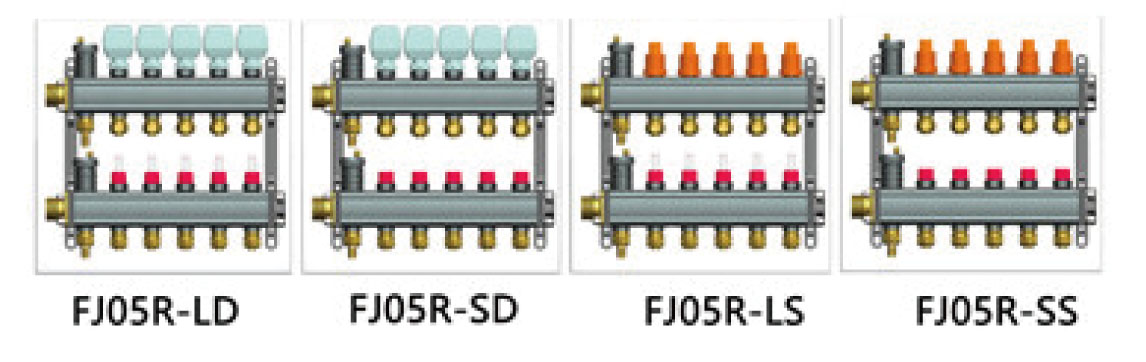

Product samples:
